Field Investigation
Field investigations play a crucial role in understanding subsurface conditions, ensuring safe and cost-effective design and construction of structures. At Vishwas Geotech Pvt. Ltd., we offer specialized field investigation services, including drilling in soil and rock strata, and collection of soil samples through advanced techniques like Standard Penetration Tests (SPT) and undisturbed sampling (UDS).
At Vishwas Geotech Pvt. Ltd., we bring extensive expertise in executing field investigations across a wide range of infrastructure sectors. Our experience spans projects involving:
- Metro Rail Systems: Supporting urban mobility with geotechnical solutions tailored for underground and elevated metro structures.
- Railways: Ensuring robust foundation designs for rail tracks, bridges, and associated facilities.
- Highways: Providing critical geotechnical data for expressways, national highways, and service roads to support efficient and durable construction.
- High-Rise Buildings: Conducting detailed subsurface explorations for stable and safe foundations in complex urban environments.

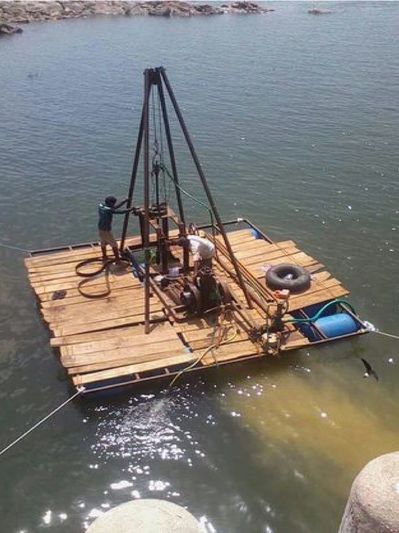

- Marine Projects: Specialized underwater field investigations for ports, bridges, and offshore structures, including drilling, sampling, and testing in challenging marine environments.
- Diverse Infrastructure Projects: From industrial facilities to renewable energy installations, we deliver geotechnical solutions for a broad spectrum of construction projects.
Our state-of-the-art equipment, skilled team, and commitment to quality enable us to meet the unique requirements of each project, ensuring timely and reliable results for our clients.
Here's a detailed overview of our field investigation services:
1. Drilling in Soil and Rock Strata
Objective: Drilling allows us to explore subsurface conditions by penetrating through different soil and rock layers. The process provides critical information about the nature, strength, and sequence of strata, aiding in the design of foundations, pavements, embankments, and other structures. Drilling Techniques:
- Auger Drilling: Ideal for shallow investigations in cohesive soils.
- Percussion Drilling: Suitable for breaking harder soil or rock strata by repeated hammering.
- Rotary Drilling: Used for deeper investigations and to collect rock core samples.
- Core Drilling: Utilized for intact rock samples, providing valuable insights into rock quality, strength, and discontinuities.
Applications:
- Assessing subsurface stratification.
- Identifying groundwater table levels.
- Collecting samples for laboratory testing.
- Locating bedrock depth for structural foundations.
2. Standard Penetration Test (SPT)
Objective: The SPT is conducted during drilling to determine the relative density, strength, and stiffness of soil layers. The test helps evaluate the bearing capacity of soils for foundation design. Procedure:
- The borehole is drilled to the required depth.
- A split-spoon sampler is driven into the soil using a 63.5 kg hammer dropped from a height of 750 mm.
- The number of hammer blows required to drive the sampler through three 150 mm intervals is recorded.
Deliverables:
- N-values for various depths.
- Insights into soil type and density.
- Identification of loose or weak soil zones.

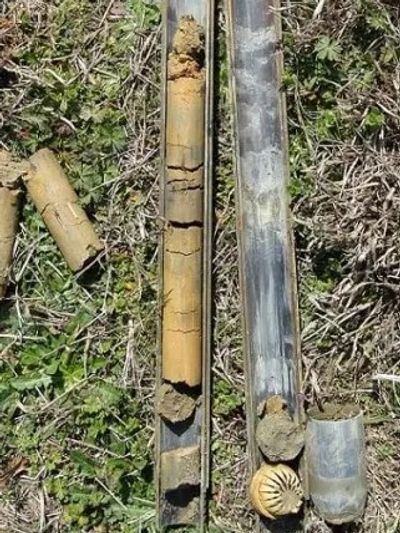

3. Collection of Undisturbed Soil Samples (UDS)
Objective: Undisturbed samples are collected to preserve the in-situ structure, moisture content, and other properties of the soil for laboratory testing. These samples are critical for determining compressibility, permeability, shear strength, and consolidation characteristics.
Methods of UDS Collection:
- Thin-Walled Tube Sampler: Best suited for soft to medium clays and silts. The sampler is pushed into the soil without disturbing its natural structure.
- Shelby Tubes: Widely used for cohesive soils.
- Piston Samplers: Used for very sensitive soils to prevent sample disturbance during extraction.
Applications:
- Determination of compressibility and consolidation parameters.
- Shear strength testing for stability analysis.
- Understanding soil behavior under different loading conditions.
4. Disturbed Soil Sampling (DS)
Objective: Disturbed samples are collected for general classification tests like grain size distribution, Atterberg limits, and moisture content determination.Collection Methods:
- Using augers or split-spoon samplers during drilling.
- Stored in labeled bags for transportation to the laboratory.
Applications:
- Identifying soil type and index properties.
- Determining consistency and grading characteristics.
5. Data Collected During Field Investigations
- Soil Profile Stratification: Identification of different layers with depth.
- Groundwater Table Depth: Essential for foundation and dewatering system designs.
- SPT N-Values: Indicating soil strength and density.
- Sample Analysis: Physical and mechanical properties of collected soil and rock samples.
Key Features of Our Field Investigations
- Advanced Equipment:
- High-performance drilling rigs suitable for all soil and rock conditions.
- SPT equipment adhering to international standards.
- Expert Team:
- Experienced geotechnical engineers and drill operators ensuring accurate and reliable results.
- Comprehensive Reports:
- Detailed borehole logs.
- Summary of subsurface conditions with recommendations for foundation design.
- Adherence to Standards:
- All investigations comply with relevant geotechnical codes.
Deliverables to Clients
- Borehole logs and SPT results.
- Samples for laboratory testing.
- Recommendations for foundation design.
- Insights into potential construction challenges.
At Vishwas Geotech Pvt. Ltd., we ensure that every geotechnical investigation is executed with precision and professionalism, providing critical data to support safe and efficient construction projects.
