Geophysical TEST & Surveys in Civil Engineering
Geophysical surveys are non-destructive techniques that utilize physical properties of the subsurface, such as electrical conductivity, magnetic susceptibility, seismic wave propagation, and gravity, to gather information about subsurface conditions. These methods are invaluable in civil engineering for several reasons:
- Cost-effective: They can significantly reduce the need for invasive investigations like drilling boreholes.
- Rapid data acquisition: Geophysical surveys can cover large areas quickly.
- Continuous data: They provide continuous profiles of subsurface conditions.
- Environmental friendliness: Minimizes disturbance to the environment.
Geophysical Testing Services provided by Vishwas Geotech are:
1. Electrical Resistivity Tomography (ERT): Helps determine the subsurface soil resistivity at various depths for Earthing System Design.
2. Thermal Resistivity Tests (TRT): are conducted for underground cable design to determining the appropriate cable size and insulation to prevent overheating.
3. Ground Penetrating Radar (GPR): is a geophysical method that uses radar pulses to image the subsurface. It's a non-destructive technique that can be used to detect and map subsurface objects like Underground Utilities and features.
4. Seismic Refraction Survey: Determines the depth and velocity of subsurface layers.
5. Multi-Channel Analysis of Surface Waves (MASW): Evaluates near-surface shear wave velocity.
6. Crosshole Sonic Logging (CSL): is a non-destructive testing method used to evaluate the quality and integrity of concrete structures, particularly deep foundations like drilled shafts and piles.

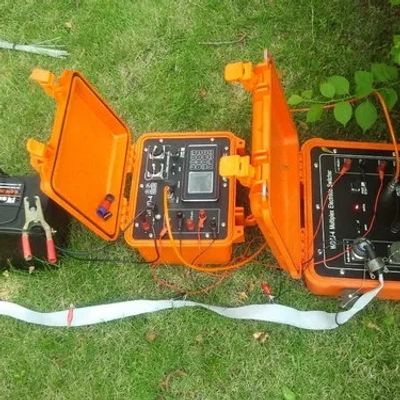

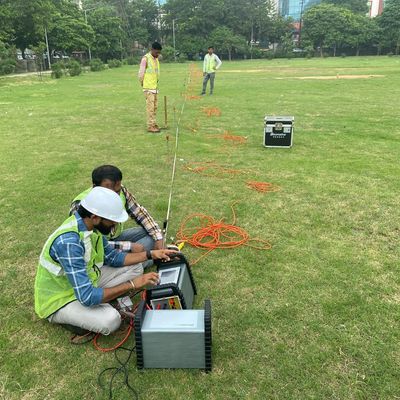

1. Electrical Resistivity Tomography (ERT)
Electrical Resistivity Tomography (ERT) is a geophysical method that measures the electrical resistivity of the subsurface. By injecting electrical current into the ground and measuring the resulting voltage, ERT can create detailed images of subsurface structures.
Applications of ERT:
- Soil Resistivity Assessment: ERT helps determine the subsurface soil resistivity at various depths for Earthing System Design. This information is essential for selecting the appropriate type and depth of earthing electrodes.
- Identifying Conductive Layers: ERT can identify conductive layers in the subsurface, which can be utilized for effective earthing system design.
- Optimizing Electrode Placement: By understanding the subsurface resistivity profile, ERT can help optimize the placement of earthing electrodes for maximum effectiveness.
- Monitoring Changes in Soil Resistivity: ERT can be used to monitor changes in soil resistivity over time, which can be affected by factors like seasonal variations, moisture content, and chemical reactions. This information is crucial for maintaining the effectiveness of the earthing system.
Use: In Solar Power Plant Projects, Oil & Gas Pipeline Projects, Electrical Substation Projects etc.
Benefits of ERT:
- Non-destructive method
- High-resolution imaging
- Versatile application
- Cost-effective

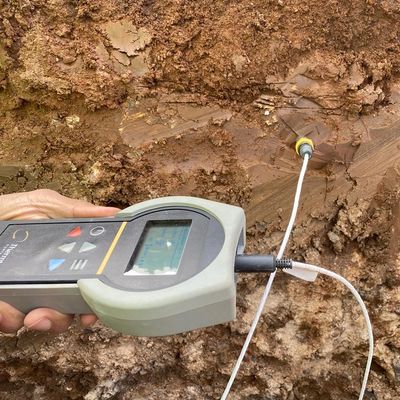

2. Thermal Resistivity Tests (TRT)
Thermal resistivity testing is crucial in various fields, including:
- Civil Engineering:
- Underground Cable Design: Determining the appropriate cable size and insulation to prevent overheating.
- Geothermal Energy Systems: Assessing the thermal properties of the ground for efficient heat exchange.
- Foundation Design: Evaluating the thermal impact of heat-generating structures.
- Building Construction:
- Insulation: Selecting suitable insulation materials to minimize heat loss or gain.
Use: In Solar Power Plant Projects, Oil & Gas Pipeline Projects, Electrical Substation Projects etc.

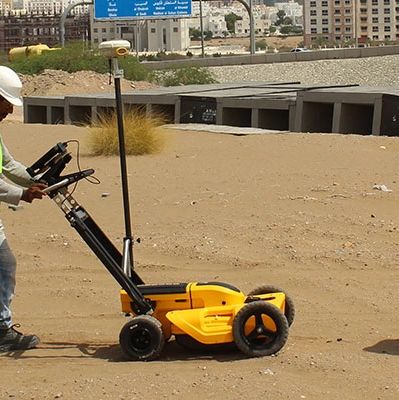

3. Ground Penetrating Radar (GPR)
GPR is a geophysical method that uses radar pulses to image the subsurface. It's a non-destructive technique that can be used to detect and map subsurface objects like Underground Utilities and features.
Applications of GPR in Civil Engineering:
- Utility Detection: Locate buried pipes, cables, and other utilities to prevent accidental damage during excavation.
- Civil Engineering: Assessing the condition of concrete structures, detecting voids, and identifying rebar locations.
- Environmental Studies: Mapping subsurface contaminants, groundwater flow, and soil layers.
4. Seismic Refraction SURVEY
Seismic refraction is a geophysical method that uses the principles of wave propagation to uncover the secrets hidden beneath the Earth's surface. It's like using sound waves to map out the layers of a cake without cutting into it.
Applications:
Seismic refraction has a wide range of applications in various fields:
- Engineering Geology:
- Assessing foundation conditions for structures
- Identifying potential hazards like sinkholes or unstable slopes
- Hydrogeology:
- Mapping groundwater aquifers
- Locating potential water sources
- Mineral Exploration:
- Detecting mineral deposits at shallow depths
5. Multi-Channel Analysis of Surface Waves (MASW)
MASW is a non-destructive geophysical technique used to determine the shear wave velocity (Vs) profile of near-surface soil and rock formations. This information is crucial for various engineering applications, including:
- Geotechnical engineering: foundation design, slope stability analysis, and earthquake engineering.
- Environmental engineering: contaminant site investigations and landfill monitoring.
- Civil engineering: road and bridge design, and tunnel construction.
Applications of MASW:
- Site characterization for building foundations: Assessing soil strength and stiffness.
- Earthquake site response analysis: Evaluating the potential for ground shaking amplification.
- Liquefaction potential assessment: Identifying areas susceptible to soil liquefaction during earthquakes.
- Slope stability analysis: Determining the stability of slopes and embankments.
- Environmental site assessments: Mapping contaminant plumes and assessing soil conditions.

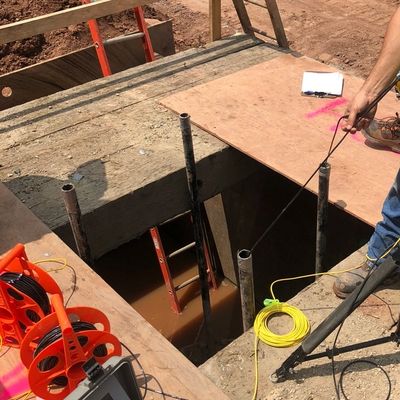

6. Crosshole Sonic Logging (CSL)
Crosshole Sonic Logging (CSL) is a non-destructive testing method used to evaluate the quality and integrity of concrete structures, particularly deep foundations like drilled shafts and piles. It helps identify anomalies such as voids, honeycombing, or low-quality concrete within the foundation.
It involves measuring the travel time of ultrasonic pulses transmitted between two or more access tubes installed within the concrete structure.
Applications of CSL:
- Assessing Concrete Quality: Identifying areas of poor concrete quality, voids, or cracks.
- Verifying Design Strength: Ensuring that the concrete meets the specified design strength.
- Monitoring Concrete Curing: Tracking the curing process and identifying potential problems.
- Evaluating Repair Effectiveness: Assessing the effectiveness of repairs to damaged concrete.
