PILE LOAD TEST
Pile load testing is a critical geotechnical investigation to assess the load-bearing capacity and settlement behavior of pile foundations. From the ambitious bullet train project to expansive highway networks and towering residential infrastructures, load testing plays a pivotal role in ensuring the structural integrity and long-term performance of these vital projects. Vishwas Geotech offers comprehensive pile load testing services, including static and dynamic load tests. Our experienced team ensures accurate data collection and analysis to validate design assumptions and optimize foundation performance, thereby contributing to the success of these landmark projects.
Purpose of Pile Load Tests
- Verify Design Assumptions: Ensures that the pile foundation can safely support the intended loads.
- Determine Load-Carrying Capacity: Provides accurate values for the pile's ultimate and allowable load capacities.
- Assess Settlement Behavior: Predicts the amount of settlement the pile will experience under different load conditions.
- Evaluate Pile Integrity: Checks for any defects or damage in the pile structure.
Pile Load Testing by Kentledge Method
Pile load Testing Services provided by Vishwas Geotech are:
Static Load Tests
- Vertical Pile Load (Compression) Test: A gradual, controlled load is applied to the top of the pile, and its settlement is monitored over time. This method provides accurate data on the pile's load-deformation behavior.
- Routine Pile Load Test: A routine pile load test is performed to verify the design assumptions and to ensure that the pile can safely carry the intended load. It typically involves applying a load equal to 1.5 times the design load.
- Lateral Pile Load Test: This test is used to assess the lateral load-carrying capacity of a pile. It involves applying horizontal loads to the pile head and measuring the resulting lateral deflection.
- Pullout Test: A pullout test is used to determine the uplift resistance of a pile. It involves applying a vertical upward load to the pile head and measuring the pullout force required to extract the pile from the ground.
Dynamic Load Tests
- Dynamic Load Test: A dynamic test is used to determine the dynamic properties of a pile, such as its stiffness and damping. It involves applying a dynamic load to the pile head and measuring the resulting vibrations.
- High-Strain Pile Integrity Test: This test is used to assess the integrity of a pile by measuring the stress wave propagation through the pile. It involves generating a stress wave at the top of the pile and measuring the time taken for the wave to travel through the pile and reflect back.
Non-Destructive Pile Testing
- Low-Strain Pile Integrity Test : A low-strain pile integrity test is a non-destructive testing method used to assess the structural integrity of a pile. It involves applying a low-strain impact to the pile head and measuring the resulting stress wave propagation through the pile.
Pile Load Testing by Kentledge Method
Static Load Tests
1. Vertical Pile Load (Compression) Test [INITIAL]:
A vertical pile load test is a geotechnical investigation method to determine the load-bearing capacity of a pile foundation. A gradually increasing vertical load is applied to the pile head, and the resulting settlement is monitored.
Methods:
- Anchor Reaction Method:
- A reaction frame or anchor system is used to resist the applied load.
- Hydraulic jacks or similar mechanisms apply the load incrementally.
- Settlement is measured using precise instruments.
- Test anchor piles are needed to resist the reaction forces generated during the test for the Anchor Reaction Method.
- Kentledge Method:
- Large concrete blocks (kentledge) are stacked on the pile head to apply the load.
- The load is increased by adding more blocks.
- Settlement is measured using precise instruments.
2. Routine Pile Load Test:
A routine load test is a quality control measure to verify the load-carrying capacity of a pile foundation. It involves applying a load to a working pile and monitoring its settlement. While it's ideal to conduct these tests on dedicated test piles, it's often practical and cost-effective to perform them on working piles, especially when a large number of piles are involved.
Key considerations for performing routine load tests on working piles:
- Selection of Piles: Piles should be selected randomly or based on specific criteria (e.g., location, soil conditions, pile type) to ensure representative testing.
- Test Load: The test load is typically 1.5 times the design load.
- Settlement Monitoring: Precise instruments are used to monitor the pile's settlement under the applied load.
- Data Analysis: The collected data is analyzed to assess the pile's load-carrying capacity and settlement behavior.
3. Lateral Pile Load Test:
A lateral load test is a geotechnical investigation to assess the lateral load-carrying capacity of a pile foundation. A horizontal load is applied to the pile head, and the resulting lateral deflection is measured.
4. Pullout Test:
A pullout test is used to determine the uplift resistance of a pile. It involves applying a vertical upward load to the pile head and measuring the pullout force required to extract the pile from the ground.
Dynamic Load Tests
1. Dynamic PILE LOAD Test:
A dynamic pile load test is a geotechnical investigation method used to determine the dynamic properties of a pile foundation, such as its stiffness and damping. This information is crucial for assessing the pile's response to dynamic loads, such as seismic or wind forces.
Test Procedure:
- Impact Load Application:
- A dynamic load is applied to the pile head using a hammer or a drop weight.
- The impact generates stress waves that propagate through the pile and the surrounding soil.
- Response Measurement:
- Accelerometers and strain gauges are installed on the pile to measure the acceleration and strain responses.
- The measured data is analyzed to determine the pile's dynamic properties.
Advantages of Dynamic Load Tests:
- Rapid Testing: Dynamic tests are relatively quick to perform compared to static load tests.
- Less Disruptive: They cause minimal disturbance to the surrounding soil.
- Suitable for Difficult Soil Conditions: Dynamic tests can be performed in challenging soil conditions where static load tests may not be feasible.
2. High-Strain Pile Integrity Test:
A High-Strain Pile Integrity Test is a method used to assess the structural integrity of a pile. It involves generating a high-strain stress wave at the top of the pile and measuring its propagation through the pile.
How it works:
- Impact Load: A heavy weight or hammer is dropped onto the pile head, generating a high-strain stress wave.
- Wave Propagation: The stress wave travels down the length of the pile.
- Wave Measurement: Sensors, such as accelerometers and strain gauges, are installed on the pile to measure the wave's propagation.
- Data Analysis: The measured data is analyzed to determine the pile's integrity. Any significant anomalies or defects in the pile, such as cracks or voids, can be identified by analyzing the wave's propagation pattern.
Key Benefits:
- Rapid Testing: It's a relatively quick method to assess pile integrity.
- Non-Destructive: It doesn't damage the pile.
- Identifies Defects: It can detect defects like cracks, voids, or weak sections in the pile.
Non-Destructive Pile Testing
1. Low-Strain Pile Integrity Test:

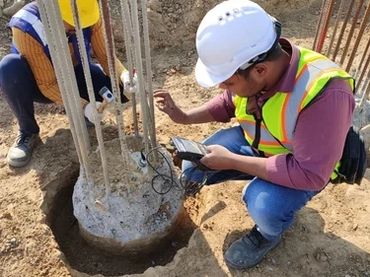

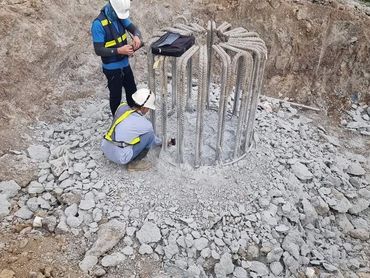

A low-strain pile integrity test is a non-destructive testing method used to assess the structural integrity of a pile. It involves applying a low-strain impact to the pile head and measuring the resulting stress wave propagation through the pile.
How it works:
- Impact: A small impact is applied to the pile head using a hand-held hammer.
- Stress Wave Propagation: The impact generates a low-strain stress wave that travels through the pile.
- Wave Measurement: Sensors, such as accelerometers, are placed on the pile head to measure the wave's propagation.
- Data Analysis: The measured data is analyzed to identify any anomalies or defects in the pile, such as cracks, voids, or weak sections.
